Parametrai:

• 4 jutikliai
• 1/2/1/3 optinė klasė
• regėjimo laukas: 98 x 43 mm
• atsako trukmė 1/25 000 s
• Suvirinimo / šlifavimo funkcija
• UV / IR apsauga DIN 16
• Svois 1000 g
• Filtro dydis: 126 x 102 mm

Gaminio numeris YT-73921
EAN kodas 5906083739217
vnt vienetas

Product description

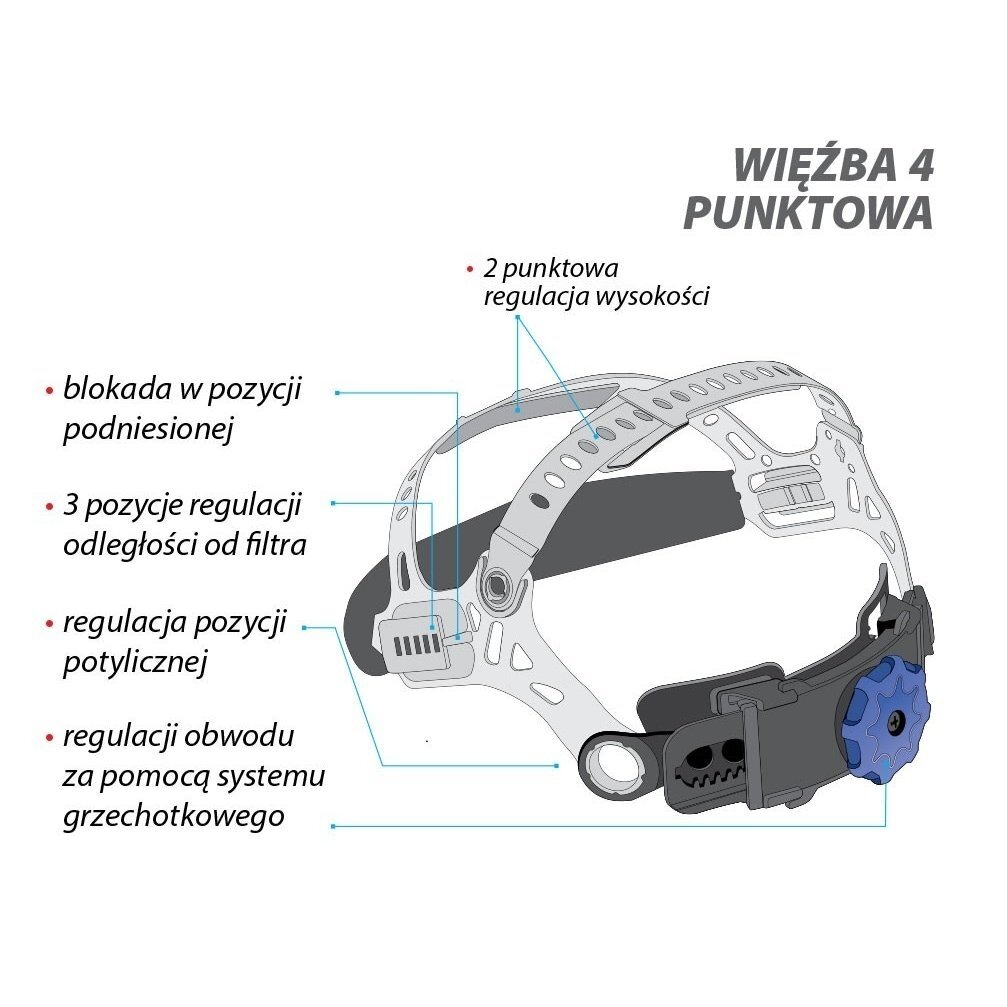

Welding helmet with self-lubricating filter. Optical class 1/2/1/3. A high quality filter equipped with 4 arc sensors provides a field of view of 98 * 43 mm, a dark state of DIN 9-13, a bright state of DIN4, a reaction time of 1/25000 s., A brightening time of 0.1-1.0 s. 0.3-0.8 ms. In addition, the filter provides UV / IR protection at DIN16 level. The helmet has a smooth adjustment of sensitivity and darkness, as well as gradual adjustment of the dimming rate. It is powered by a solar cell, as well as 2 3V type CR2450 batteries and has an automatic on / off function. The helmet also has a protective function during grinding. It can be used in temperatures ranging from -5 degrees Celsius to +55 degrees Celsius. In addition, it features a very comfortable 4-point tether with 2-point height adjustment, occipital adjustment, smooth ratchet circuit regulation, and Distance from the filter.

• 4 arc sensors
• optical class 1/2/1/3
• field of view: 98 x 43 mm
• response time 1 / 25,000 s
• Welding / grinding function
• UV / IR protection DIN 16
Destination / Application
Welding and grinding

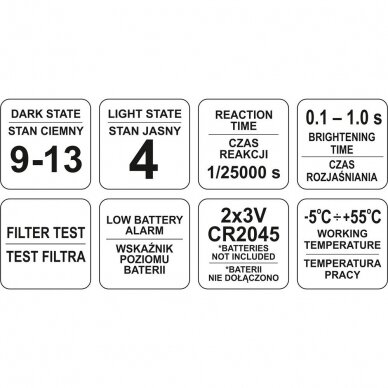

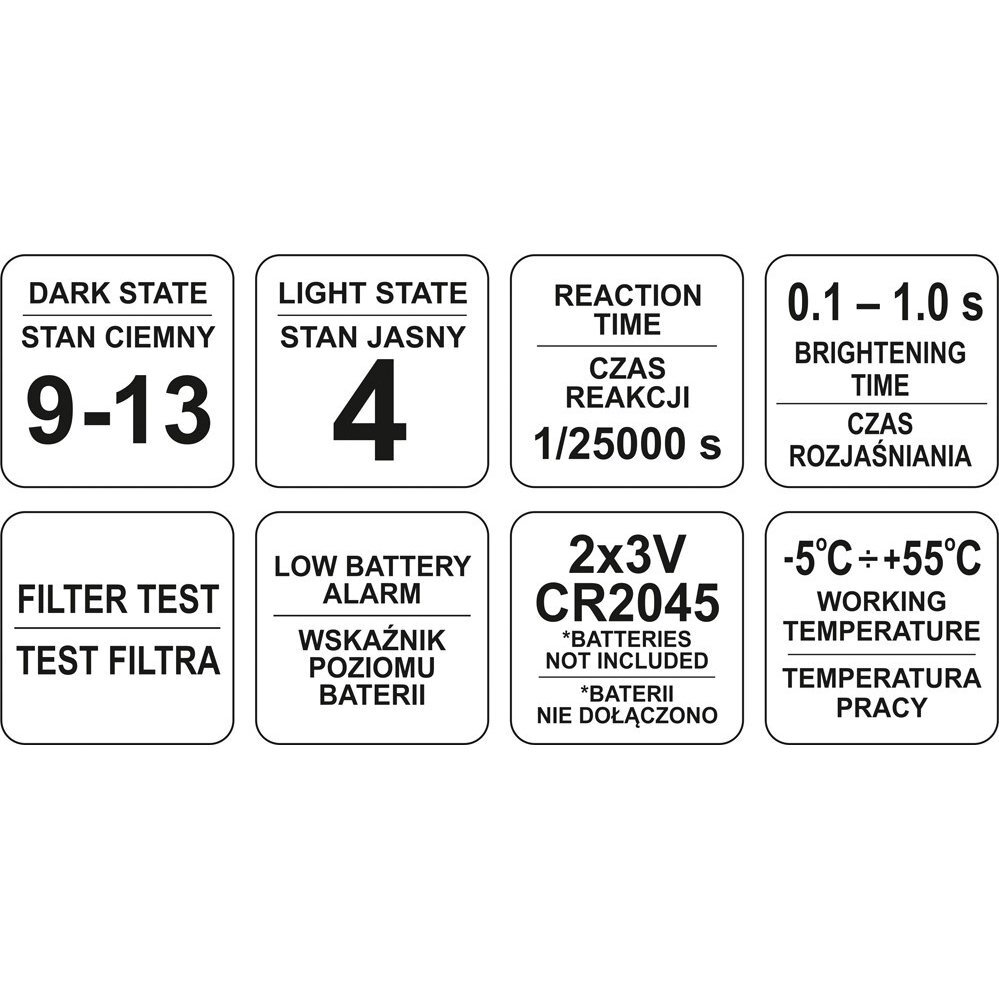

Technical data
Index number YT-73921
EAN 5906083739217
Brand Yato
PCS unit
Gross Weight (kg) 1.0000
Power supply 2x3V CR2045
Filter dimensions [mm] 126x102
Filter de inchidere la culoare
Number of sensors [pcs] 4
Field of view [mm] 98x43
Light condition [DIN] 4
Dark condition [DIN] 9-13 '
Response time [ms] 1/25000 '
Sudura / slefuire functions
MMA / MIG / MAG / TIG welding method

FACE SHIELD: SUPER; OPTICAL CLASS: 1 / 2 / 1 / 3; VIEWING AREA: 98×43MM; CARTRIDGE SIZE: 126×102×18MM; ARC SENSOR: 4; LIGHT STATE: DIN 4; DARK STATE: VARIABLE SHADE, 9 ~13; SHADE CONTROL: EXTERNAL,VARIABLE; POWER ON/OFF: FULLY AUTOMATIC; SENSITIVITY CONTROL: EXTERNAL, LOW — HIGH, BY INFINITELY DIAL KNOB; UV/IR PROTECTION: DIN16 POWER SUPPLY:SOLAR CELL + BATTERY CHANGE REQUIRED 2×CR2450 LITHIUM BATTERIES; SWITCHING TIME: EXTERNAL, 1/25000S, FROM LIGHT TO DARK; DARK TO LIGHT:0.1-1.0S BY INFINITELY DIAL KNOB; LOW AMPERAGE TIG: ≥5AMPS(DC); GRINDING FUNCTION: YES; LOW VOLUME ALARM: YES; ADF SELF-CHECK: YES; OPERATING TEMP: -5~+55 CELS. DEGREE; STORING TEMP: -20~+70 CELS. DEGREE; WEIGHT: 500G; PACKING SIZE: 33×23×26CM; HEADGEAR-3000
